Design Elements

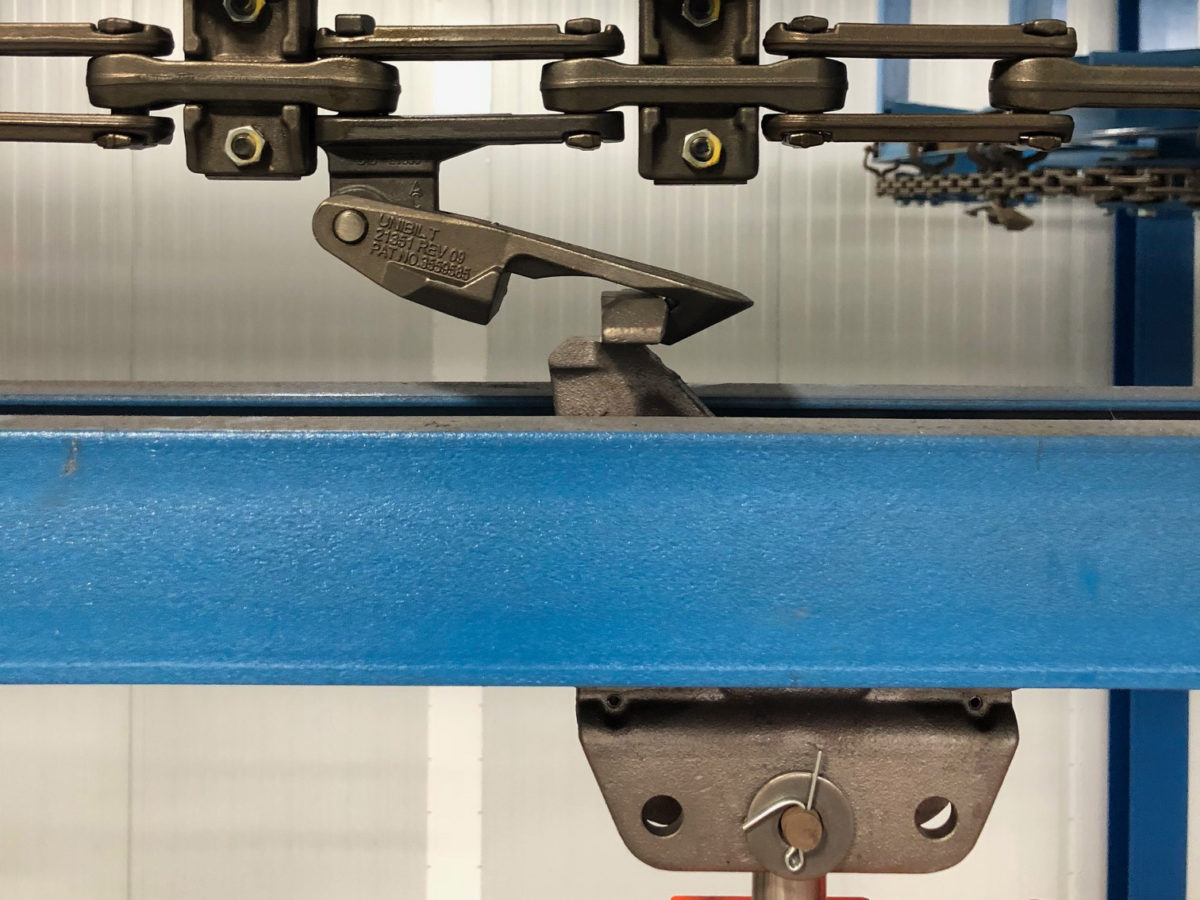

Over & under power and free conveyors derive their name from the power/ load track configuration. The load track is a pair of Hi-carbon structural channels fixture toe to toe below the power source. The power source is either an enclosed track or an I-Beam chain conveyor. Many systems will utilize more than one chain with each chain running at speeds required to solve specific production or throughput issues.
Capacities
Phoenix can provide solutions for your specific handling needs. Whether your loads are 500 lbs. or 12,000 lbs. we have the equipment to put to work. This would include: R-W Over-Way Conveyor, Uni/Uni and Uni/3” Conveyor, as well as 3”,4” and 6” Power & free conveyor.
| Type | Power Track | Free Track | Power Chain | Single Trolley Capacity | Chain Pulling Load |
| SxS | Enclosed | Enclosed | 6/8″ Pitch | 250 | 750 |
| Enc/3 | Enclosed | 3″ Channel | 6/8″ Pitch | 750 | 750 |
| 333 | 3″ I-Beam | 3″ Channel | X-348 | 750 | 1900 |
| 444 | 4″ I-Beam | 4″ Channel | X-458 | 1250 | 4000 |
| 466 | 4″ I-Beam | 6″ Channel | X-678 | 4000 | 5000 |
